201 Series Portable Drum Rollers
Mix the contents of a closed drum without even opening it! NO Mess… NO Exposure or Contamination!
Portable Drum Rollers mix right inside a sealed drum. Mixing drums is easy with a compact, portable industrial drum mixer.
Roll closed drum to gently mix contents. Remix valuable settled or stratified ingredients, or smooth rough parts by tumbling with media.
Mixing in a closed drum eliminates the hazards of worker exposure, and the messy cleanup associated with insertion mixers.
- Roll closed drum on its side to agitate contents
- Compact industrial drum mixers
- Mix 30 or 55 gallon (114 or 210 liter) steel drum

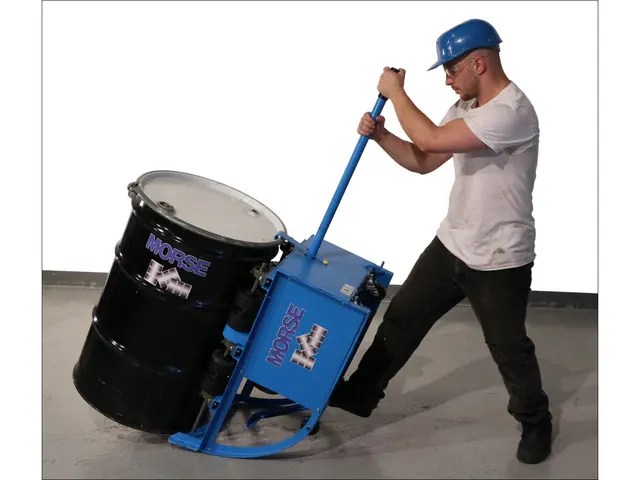

- Rock-over drum loading with built-in extendable handle
- Use as drain stand to dispense drum
- Select Fixed or Variable Speed Drum Roller
- Electric or Air powered drum rollers available

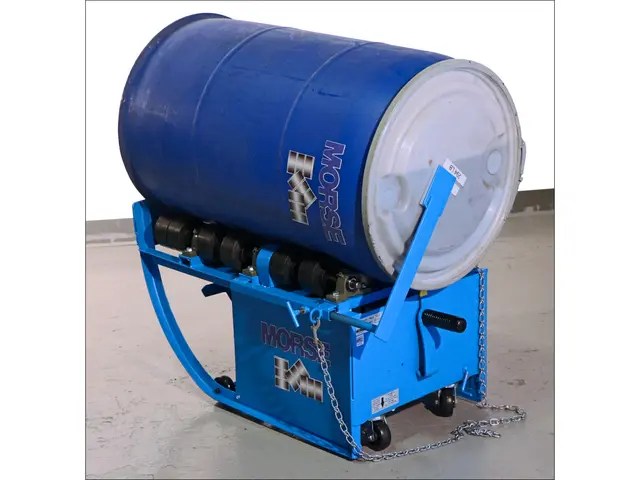

- Options to roll plastic or 1-to-5 gallon can available
| Model | Type | Capacity | Motor Style | Operation | Voltage | Speed |
|---|---|---|---|---|---|---|
| 201/20-1 | Roller | 500 lbs liquid load, 300 lbs dry load | 60 Hz | 1-Phase | 115V | 20 rpm |
| 201/20-1-50 | Roller | 500 lbs liquid load, 300 lbs dry load | 50 Hz | 1-Phase | 220V | 16 rpm |
| 201/20-3 | Roller | 500 lbs liquid load, 300 lbs dry load | 60 Hz | 3-Phase | 230/460V | 20 rpm |
| 201/20-3-50 | Roller | 500 lbs liquid load, 300 lbs dry load | 50 Hz | 3-Phase | 230/400V | 16 rpm |
| 201/20-575 | Roller | 500 lbs liquid load, 300 lbs dry load | 60 Hz | 3-Phase | 575V | 20 rpm |
| 201/20-A | Roller | 500 lbs liquid load, 300 lbs dry load | Air Motor | 20 rpm | ||
| 201/20-E1 | Roller | 500 lbs liquid load, 300 lbs dry load | 60 Hz | 1-Phase Explosion-Proof | 208/230V | 20 rpm |
| 201/20-E1-50 | Roller | 500 lbs liquid load, 300 lbs dry load | 50 Hz | 1-Phase Explosion-Proof | 220V | 16 rpm |
| 201/20-E3 | Roller | 500 lbs liquid load, 300 lbs dry load | 60 Hz | 3-Phase Explosion-Proof | 208/230/460V | 20 rpm |
| 201/20-E3-50 | Roller | 500 lbs liquid load, 300 lbs dry load | 50 Hz | 3-Phase Explosion-Proof | 230/400V | 16 rpm |
| 201/20-E575 | Roller | 500 lbs liquid load, 300 lbs dry load | 60 Hz | 3-Phase Explosion-Proof | 575V | 20 rpm |
| 201B/20-1 | Belted | 300 lbs liquid load, 300 lbs dry load | 60 Hz | 1-Phase | 115V | 20 rpm |
| 201B/20-1-50 | Belted | 300 lbs liquid load, 300 lbs dry load | 50 Hz | 1-Phase | 220V | 16 rpm |
| 201B/20-3 | Belted | 300 lbs liquid load, 300 lbs dry load | 60 Hz | 3-Phase | 208/230/460V | 20 rpm |
| 201B/20-3-50 | Belted | 300 lbs liquid load, 300 lbs dry load | 50 Hz | 3-Phase | 230/400V | 16 rpm |
| 201B/20-575 | Belted | 300 lbs liquid load, 300 lbs dry load | 60 Hz | 3-Phase | 575V | 20 rpm |
| 201B/20-A | Belted | 300 lbs liquid load, 300 lbs dry load | Air Motor | 20 rpm | ||
| 201B/20-E1 | Belted | 300 lbs liquid load, 300 lbs dry load | 60 Hz | 1-Phase Explosion-Proof | 115/208/230V | 20 rpm |
| 201B/20-E1-50 | Belted | 300 lbs liquid load, 300 lbs dry load | 50 Hz | 1-Phase Explosion-Proof | 220V | 16 rpm |
| 201B/20-E3 | Belted | 300 lbs liquid load, 300 lbs dry load | 60 Hz | 3-Phase Explosion-Proof | 208/230/460V | 20 rpm |
| 201B/20-E3-50 | Belted | 300 lbs liquid load, 300 lbs dry load | 50 Hz | 3-Phase Explosion-Proof | 230/400V | 16 rpm |
| 201B/20-E575 | Belted | 300 lbs liquid load, 300 lbs dry load | 60 Hz | 3-Phase Explosion-Proof | 575V | 20 rpm |
| 201BVS-1 | Belted | 300 lbs liquid load, 300 lbs dry load | 60 Hz | 1-Phase | 115V | variable speed 15-24 rpm |
| 201BVS-1-50 | Belted | 300 lbs liquid load, 300 lbs dry load | 50 Hz | 1-Phase | 220V | variable speed 13-20 rpm |
| 201BVS-3 | Belted | 300 lbs liquid load, 300 lbs dry load | 60 Hz | 3-Phase | 208/230/460V | variable speed 15-24 rpm |
| 201BVS-3-50 | Belted | 300 lbs liquid load, 300 lbs dry load | 50 Hz | 3-Phase | 230/400V | variable speed 13-20 rpm |
| 201BVS-575 | Belted | 300 lbs liquid load, 300 lbs dry load | 60 Hz | 3-Phase | 575V | variable speed 15-24 rpm |
| 201BVS-A | Belted | 300 lbs liquid load, 300 lbs dry load | Air Motor | variable speed 15-24 rpm | ||
| 201BVS-E1 | Belted | 300 lbs liquid load, 300 lbs dry load | 60 Hz | 1-Phase Explosion-Proof | 208/230V | variable speed 15-24 rpm |
| 201BVS-E1-50 | Belted | 300 lbs liquid load, 300 lbs dry load | 50 Hz | 1-Phase Explosion-Proof | 220V | variable speed 13-20 rpm |
| 201BVS-E3 | Belted | 300 lbs liquid load, 300 lbs dry load | 60 Hz | 3-Phase Explosion-Proof | 208/230/460V | variable speed 15-24 rpm |
| 201BVS-E3-50 | Belted | 300 lbs liquid load, 300 lbs dry load | 50 Hz | 3-Phase Explosion-Proof | 230/400V | variable speed 13-20 rpm |
| 201BVS-E575 | Belted | 300 lbs liquid load, 300 lbs dry load | 60 Hz | 3-Phase Explosion-Proof | 575V | variable speed 15-24 rpm |
| 201VS-1 | Roller | 500 lbs liquid load, 300 lbs dry load | 60 Hz | 1-Phase | 115V | variable speed 15-24 rpm |
| 201VS-1-50 | Roller | 500 lbs liquid load, 300 lbs dry load | 50 Hz | 1-Phase | 220V | variable speed 13-20 rpm |
| 201VS-3 | Roller | 500 lbs liquid load, 300 lbs dry load | 60 Hz | 3-Phase | 208/230/460V | variable speed 15-24 rpm |
| 201VS-3-50 | Roller | 500 lbs liquid load, 300 lbs dry load | 50 Hz | 3-Phase | 230/400V | variable speed 13-20 rpm |
| 201VS-575 | Roller | 500 lbs liquid load, 300 lbs dry load | 60 Hz | 3-Phase | 575V | variable speed 15-24 rpm |
| 201VS-A | Roller | 500 lbs liquid load, 300 lbs dry load | Air Motor | variable speed 15-24 rpm | ||
| 201VS-E1 | Roller | 500 lbs liquid load, 300 lbs dry load | 60 Hz | 1-Phase Explosion-Proof | 115/208/230V | variable speed 15-24 rpm |
| 201VS-E1-50 | Roller | 500 lbs liquid load, 300 lbs dry load | 50 Hz | 1-Phase Explosion-Proof | 220V | variable speed 13-20 rpm |
| 201VS-E3 | Roller | 500 lbs liquid load, 300 lbs dry load | 60 Hz | 3-Phase Explosion-Proof | 208/230/460V | variable speed 15-24 rpm |
| 201VS-E3-50 | Roller | 500 lbs liquid load, 300 lbs dry load | 50 Hz | 3-Phase Explosion-Proof | 400V | variable speed 13-20 rpm |
| 201VS-E575 | Roller | 500 lbs liquid load, 300 lbs dry load | 60 Hz | 3-Phase Explosion-Proof | 575V | variable speed 15-24 rpm |
201/20-1 201/20-1-50 201/20-3 201/20-3-50 201/20-575 201/20-A 201/20-E1 201/20-E1-50 201/20-E3 201/20-E3-50 201/20-E575 201B/20-1 201B/20-1-50 201B/20-3 201B/20-3-50 201B/20-575 201B/20-A 201B/20-E1 201B/20-E1-50 201B/20-E3 201B/20-E3-50 201B/20-E575 201BVS-1 201BVS-1-50 201BVS-3 201BVS-3-50 201BVS-575 201BVS-A 201BVS-E1 201BVS-E1-50 201BVS-E3 201BVS-E3-50 201BVS-E575 201VS-1 201VS-1-50 201VS-3 201VS-3-50 201VS-575 201VS-A 201VS-E1 201VS-E1-50 201VS-E3 201VS-E3-50 201VS-E575
Contact us today for pricing and delivery information
call 800-575-4835 • email sales@handlingconcepts.com
