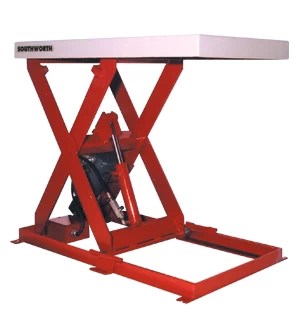

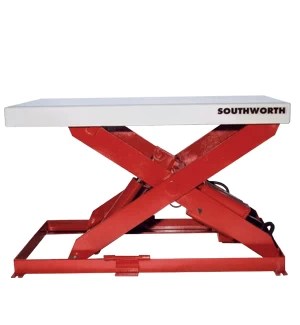

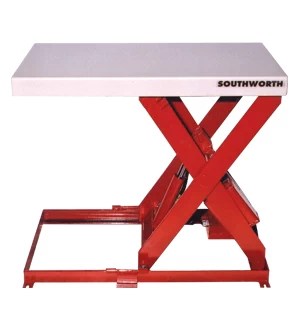

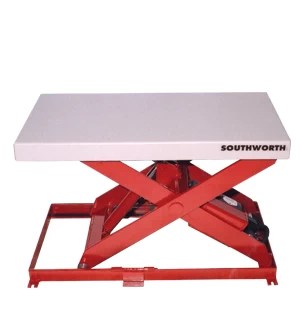

Backsaver Lite Lift Tables
These lighter capacity, light-duty hydraulic lift tables are built to the same exacting standards as our higher capacity Backsaver Hydraulic Lift Tables. They are available in 550, 1100, & 1500 lb. capacities. Ideal for light duty applications, they are an economical way to eliminate manual lifting and positioning.
- Low pressure hydraulics
- Fast raising and lowering
- Fully adjustable down speed
- Heavy-duty torque tubes to minimize deflection
- Lubricated for life pins, rollers and bushings
- Full width straight through axles for increased stability
- Heavy-duty wire braided hoses for maximum burst strength
- Tell-tale return hydraulic line prevents fluid spillage
- Built-in maintenance chocks
- Light Duty Lift Tables available in 550, 1,100 and 1,500 lb. capacities
- Standard Platforms: 20″ x 36″ and 24″ x 48″ (LL1.5-35)
- Backsaver Lite Lifts operate on 115/1/60 power
- Lifting Heights to 41-1/4″
| Model | Capacity | Raised Height | Lowered Height | Standard Platform | Motor HP | Voltage |
|---|---|---|---|---|---|---|
| LL05.5-26 | 550 lbs. | 31-1/2″ | 5-1/2″ | 20″ x 36″ | 0.5 | 115/1/60 |
| LL1.1-26 | 1100 lbs | 31-1/2″ | 5-1/2″ | 20″ x 36″ | 0.5 | 115/1/60 |
| LL1.5-35 | 1500 lbs | 41-1/4″ | 6-1/4″ | 24″ x 48″ | 0.5 | 115/1/60 |
Optional Bellows Accordion Skirting
Black and yellow vinyl skirting wraps entire unit to keep underneath free from debris.
Pleats expand and contract as unit is raised and lowered.
LL05.5-26 LL1.1-26 LL1.5-35
Contact us today for pricing and delivery information
call 800-575-4835 • email sales@handlingconcepts.com
