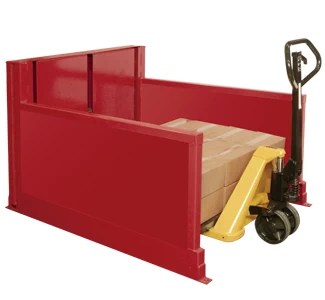

PalletPal® Roll-On™ Level Loader
With internal hydraulic power, PalletPal® Roll-On™ Level Loaders lower to floor height so pallets can be rolled on and off with a hand pallet truck. The lift is then easily adjusted by pushbutton or foot switch control to maintain an ideal height for manual loading and unloading. The narrow side and back panels allow for easy reach over for 4 side access.
- Pan-style platform lowers to floor level
- Can be loaded and unloaded with a hand pallet truck
- Choose 2500 or 4000 Lb. capacity
- Narrow side panels allow workers to stand close to the load, minimizing reach over
- Photo-eye stop descent when beam is interrupted
- Platform locks in partially up position to allow relocation by means of a hand pallet truck
- Available One-Touch Auto Leveling provides up or down adjustment by a preset increment at the touch of a button
| Model Number | Load Capacity | Raised Height | Lowered Height | Platform Size | Rise Time | Motor HP | Voltage |
|---|---|---|---|---|---|---|---|
| ROLLC2.5-28 | 2500 lbs | 28″ | 3/8″ | 44″ x 48″ | 22 sec | 1 | 115/1/60 |
| ROLLC4-28 | 4000 lbs | 28″ | 3/8″ | 44″ x 48″ | 30 sec | 1 | 115/1/60 |
Non-Standard Platform Sizes available – Inquire
ROLLC2.5-28 ROLLC4-28
Contact us today for pricing and delivery information
call 800-575-4835 • email sales@handlingconcepts.com
