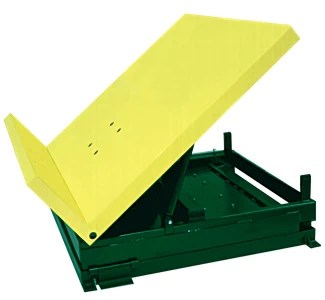

E-Z Reach™ Fixed Height Tilters
For applications utilizing small or shallow containers that do not require vertical repositioning, a Fixed Height Tilter is the ideal choice.
Fixed height tilters can be placed directly on the floor or mounted on a platform and will tilt contents either 30˚ or 45˚, depending on model, for easy access to items without bending, reaching or stretching.
- Mounts directly on floor or on a fixed height base
- Available in 2,000 and 4,000 lbs capacities
- 30˚ or 45˚ tilt angle depending on model
- Available in hydraulic or pneumatic configurations
| Model Number | Actuation | Capacity | Std Platform (W x L) | Max Platform (W x L) | Lowered Height | Angular Travel | Power |
|---|---|---|---|---|---|---|---|
| T2-45 | Hydraulic | 2000 lbs. | 24″ x 36″ | 48″ x 48″ | 7-1/2″ | 30˚ or 45˚ | 115/1/60 |
| T4-45 | Hydraulic | 4000 lbs. | 24″ x 36″ | 48″ x 48″ | 7-1/2″ | 30˚ or 45˚ | 115/1/60 |
| GTA2-30 | Pneumatic | 2000 lbs. | 36″ x 48″ | 48″ x 60″ | 7″ | 30˚ | 80psi / 80cfm |
| GTA4-30 | Pneumatic | 4000 lbs. | 36″ x 48″ | 48″ x 60″ | 7″ | 30˚ | 80psi / 80cfm |
T2-45 T4-45 GTA2-30 GTA4-30
Contact us today for pricing and delivery information
call 800-575-4835 • email sales@handlingconcepts.com
