LiftMat Low Profile Lift Tables

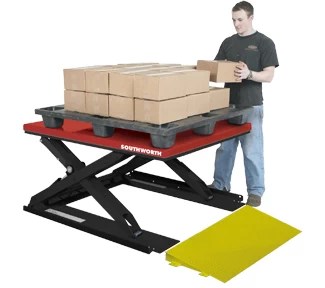

Get the advantage of four sided accessibility without the expense or hassle of digging a pit for your lift table. LiftMat Low-Profile lift tables have a collapsed height as low as 3.25 inches. An optional ramp allows the low-profile lift table to be fed with a hand pallet truck.
A full perimeter Toe Guard stops the descent of the lift table when it comes into contact with any obstruction.
LiftMat Low Profile Lift tables are best suited to applications where the load is evenly distributed.
In addition to standard platforms, LiftMat Low Profile Lift Tables can also be equipped with turntable tops.
| Model | Capacity | Raised Height | Lowered Height | Standard Platform | Maximum Platform | Motor HP | Voltage |
|---|---|---|---|---|---|---|---|
| LM2.2-31 | 2200 lbs | 34.75″ | 3.25″ | 24″ x 60″ | 48″ x 96″ | 1 | 115/1/60 |
| LM2.2-31 w/Turntable | 1950 lbs | 35.625″ | 4.125″ | 48″ x 66″ | 48″ x 96″ | 1 | 115/1/60 |

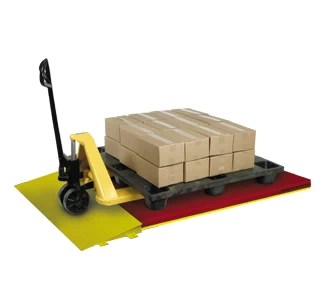

Optional Hand Pallet Tuck Accessible Ramp
30″ to 60″ long diamond plate ramps available. Optional roller feature is also available upon request.
LM2.2-31
Contact us today for pricing and delivery information
call 800-575-4835 • email sales@handlingconcepts.com
