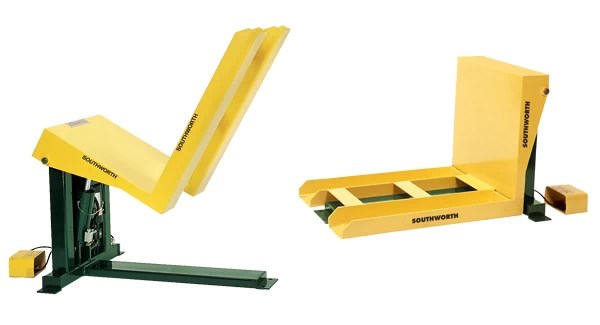

E-Z Reach™ Roll-On™ Container Tilters
With fork channels that allow hand pallet trucks or fork trucks to place container directly on the tilter in a single step, ZTU-Series, Roll-On™ Container Tilters are ideal for stationary/permanent installation at the workstation.
Tilt a wide variety of containers including wire baskets, plastic containers, and gaylords up to 85˚ for easy access to contents without bending reaching and stretching.
- 2,000 and 4,000 lb. Capacity
- Available with Footswitch or Hand Pendant Control
- Tilt Loads up to 85˚ to Eliminate Bending and Stretching
| Model Number | Capacity | Mast Depth | Overall Width | Overall Length | Fork Length | Fork Height | Fork Out To Out | Fork Width | Tilt | Power |
|---|---|---|---|---|---|---|---|---|---|---|
| ZTU-2 | 2,000 lbs. | 7″ | 42″ | 47″ | 40″ | 4″ | 29″ | 8″ | 85˚ | 115/1/60 |
| ZTU-4 | 4,000 lbs. | 7″ | 42″ | 47″ | 40″ | 4″ | 29″ | 8″ | 85˚ | 115/1/60 |
ZTU-2 ZTU-4
Contact us today for pricing and delivery information
call 800-575-4835 • email sales@handlingconcepts.com
