Backsaver Hydraulic Lift Tables

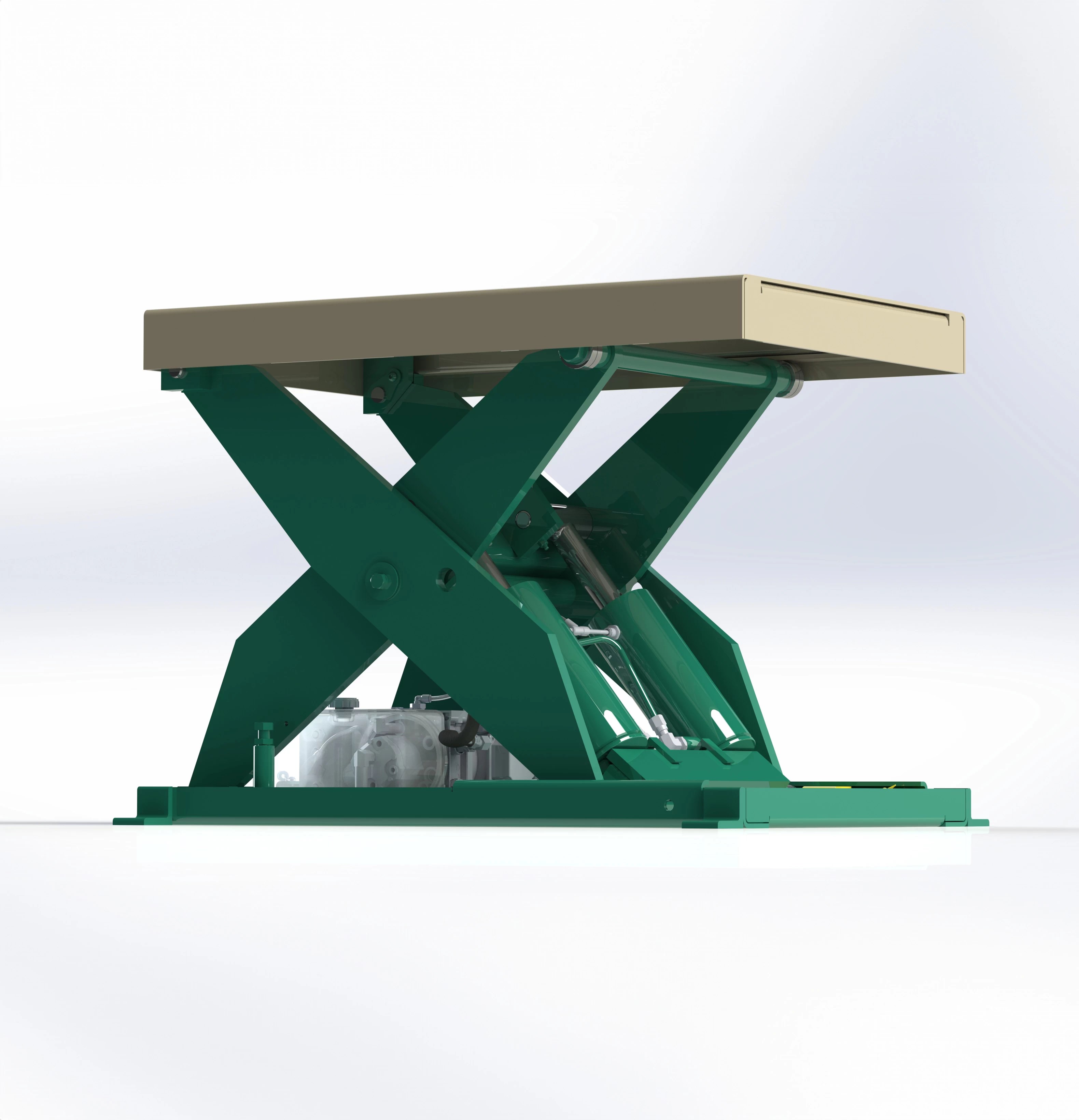

Backsaver Hydraulic Lift Table Model LS2-24

Southworth Backsaver Hydraulic Lift Tables are extremely rugged and reliable machines. Thousands of Backsaver Hydraulic Lift Tables are in use throughout world for machine feeding, work positioning, assembly, order picking, pallet loading, and a wide range of other applications. Backsaver Lift Tables are available in many basic sizes and capacities to lift and position loads up to 6,000 lbs to heights up to 56″. The wide range of power options, controls, tabletops, and base configurations that can be specified for each of the many basic sizes gives the user an almost unlimited choice of variations.

Hydraulic Lift Tables in 2,000, 3,000, 4,000 and 6,000 lb. capacities
Lifting Heights to 55.25″
Platforms up to 72″ x 96″
Optional Platforms Including Conveyor Tops, Ball Transfers, and Turntables Available
Custom Finishes Including Two-Part Epoxy, Corrosion Resistant Coatings and Stainless Steel Available
Standard Units Available for Quick Shipment
Low pressure hydraulics
Fast raising and lowering

Fully adjustable down speed
Heavy-duty torque tubes to minimize deflection
Lubricated for life pins, rollers and bushings
Full width straight through axles for increased stability throughout the travel range
Heavy-duty wire braided hoses for maximum burst strength
Tell-tale return hydraulic line prevents fluid spillage
Built-in maintenance chocks
Bolt-on power unit – neat, clean, easily accessible

OSHA-compliant Backsaver hydraulic lift table offered by Handling Concepts for Northeast Ohio manufacturing and warehouse environments

Backsaver lift table with integrated safety rails offered by Handling Concepts in the Cleveland area for manufacturing operations

Industrial Backsaver hydraulic lift table offered by Handling Concepts for warehouses and manufacturing facilities in Northeast Ohio

Model	Capacity	Raised Height	Lowered Height	Standard Platform	Maximum Platform	Motor HP	Voltage
LS2-24	2000 lbs	31.25″	7.25″	24″ x 36″	48″ x 60″	1	115/1/60
LS3-24	3000 lbs	31.25″	7.25″	24″ x 36″	48″ x 60″	1	115/1/60
LS4-24	4000 lbs	31.25″	7.25″	24″ x 36″	48″ x 60″	1	115/1/60
LS6-24	6000 lbs	31.25″	7.25″	24″ x 36″	48″ x 60″	1	115/1/60
LS2-36	2000 lbs	43.25″	7.25″	24″ x 48″	48″ x 72″	1	115/1/60
LS3-36	3000 lbs	43.25″	7.25″	24″ x 48″	48″ x 72″	1	115/1/60
LS4-36	4000 lbs	43.25″	7.25″	24″ x 48″	48″ x 72″	1	115/1/60
LS6-36	6000 lbs	43.25″	7.25″	24″ x 48″	48″ x 72″	3	460/3/60
LS2-48	2000 lbs	55.25″	7.25″	24″ x 64″	48″ x 96″	3	460/3/60
LS3-48	3000 lbs	55.25″	7.25″	24″ x 64″	48″ x 96″	3	460/3/60
LS4-48	4000 lbs	55.25″	7.25″	24″ x 64″	48″ x 96″	3	460/3/60
LS6-48	6000 lbs	55.25″	7.25″	24″ x 64″	48″ x 96″	3	460/3/60
LS2-24W	2000 lbs	31.25″	7.25″	36″ x 36″	60″ x 60″	1	115/1/60
LS3-24W	3000 lbs	31.25″	7.25″	36″ x 36″	60″ x 60″	1	115/1/60
LS4-24W	4000 lbs	31.25″	7.25″	36″ x 36″	60″ x 60″	1	115/1/60
LS6-24W	6000 lbs	31.25″	7.25″	36″ x 36″	60″ x 60″	1	115/1/60
LS2-36W	2000 lbs	43.25″	7.25″	36″ x 48″	60″ x 72″	1	115/1/60
LS3-36W	3000 lbs	43.25″	7.25″	36″ x 48″	60″ x 72″	1	115/1/60
LS4-36W	4000 lbs	43.25″	7.25″	36″ x 48″	60″ x 72″	1	115/1/60
LS6-36W	6000 lbs	43.25″	7.25″	36″ x 48″	60″ x 72″	3	460/3/60
LS2-48W	2000 lbs	55.25″	7.25″	48″ x 64″	72″ x 96″	3	460/3/60
LS3-48W	3000 lbs	55.25″	7.25″	48″ x 64″	72″ x 96″	3	460/3/60
LS4-48W	4000 lbs	55.25″	7.25″	48″ x 64″	72″ x 96″	3	460/3/60
LS6-48W	6000 lbs	55.25″	7.25″	48″ x 64″	72″ x 96″	3	460/3/60

Optional Bellows Accordion Skirting
Black and yellow vinyl skirting wraps entire unit to keep underneath free from debris.
Pleats expand and contract as unit is raised and lowered.

LS2-24 LS3-24 LS4-24 LS6-24 LS2-36 LS3-36 LS4-36 LS6-36 LS2-48 LS3-48 LS4-48 LS6-48 LS2-24W LS3-24W LS4-24W LS6-24W LS2-36W LS3-36W LS4-36W LS6-36W LS2-48W LS3-48W LS4-48W LS6-48W

Contact us today for pricing and delivery information
call 800-575-4835 • email sales@handlingconcepts.com

See these other Lift Table Models:

LS Series Hydraulic Lift Tables
2,000 – 12,000 lb. capacities
Lifting Heights up to 98″
Platforms up to 60″ x 156″

Heavy Duty Hydraulic Lift Tables
4,000 – 25,000 lb. capacities
Lifting Heights up to 100″
Platforms up to 108″ x 80″

Backsaver Lite Lift Tables
550, 1,100 and 1,500 lb. capacities
Lifting Heights up to 41-1/4″
Platforms up to 24″ x 48″

Spacesaver LSH Series High Rise Lift Tables
1,000 – 12,000 lb. capacities
Lifting Heights up to 168″
Platforms up to 72″ x 144″

Floor Height Lift Tables / Floor Level Lift Tables
2,000, 4,000 and 6,000 lb. capacities
Lifting Heights to up 35-3/8″
Platform 50″ x 48″

LSD Series Dual and Wide Base Hydraulic Lift Tables
4,000 – 12,000 lb. capacities
Lifting Heights up to 70″
Platforms up to 132″ x 120″

LiftMat Low Profile Lift Tables
1,950 and 2,200 lb. capacities
Lifting Heights to up 35-5/8″
Platforms up to 48″ x 66″

LST Series Tandem Hydraulic Lift Tables
4,000 – 12,000 lb. capacities
Lifting Heights up to 70″
Platforms up to 84″ x 204″

Pneumatic Lift Tables
2,000 and 4,000 lb. capacities
Lifting Height 32″
Platforms up to 48″ x 48″

L Series CAM Lift Tables
8,000 – 30,000 lb. capacities
Lifting Heights up to 47-1/4″
Platforms up to 72″ x 96″

Turntables and Turntable Lifts
2,000, 3,500, 4,000 and 6,000 lb. capacities
