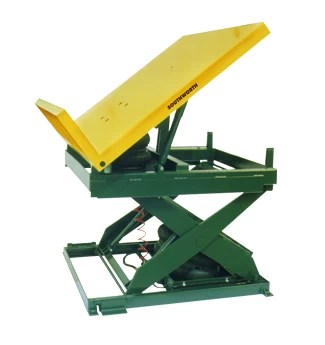

E-Z Reach™ Lift and Tilt Tables
The E-Z Reach™ Lift and Tilt Table allows independent control of lift and tilt to precisely position containers or other items at the optimum height and tilt angle.
E-Z Reach™ Lift and Tilt Tables with their exclusive Universal Tilter Base (UTB) compensate for the shifting center of gravity as loads are tilted.
The open frame top allows the tilting hydraulics to retract within the frame resulting in a lower profile when in the full down position. Lift and Tilt Tables with UTB also feature a shorter but wider stance for improved stability in a small footprint.
- Independent Control of Lift and Tilt
- Precise Positioning
- Capacities from 1,000 – 4,000 lbs.
- Choose from Hydraulic or Pneumatic Actuation
| Model Number | Actuation | Capacity | Std Platform (W x L) | Max Platform (W x L) | Lowered Height | Vertical Travel | Angular Travel | Raised Height | Power |
|---|---|---|---|---|---|---|---|---|---|
| UTB1 | Hydraulic | 1000 lbs. | 42″ x 42″ | 66″ x 72″ | 11″ | 28″ | 30˚ or 45˚ | 39″ | 115/1/60 |
| UTB2 | Hydraulic | 2000 lbs. | 42″ x 42″ | 66″ x 72″ | 11″ | 28″ | 30˚ or 45˚ | 39″ | 115/1/60 |
| UTB4 | Hydraulic | 4000 lbs. | 42″ x 42″ | 66″ x 54″ | 11″ | 28″ | 30˚ or 45˚ | 39″ | 115/1/60 |
| GLTA2-24 | Pneumatic | 2000 lbs. | 36″ x 48″ | 48″ x 60″ | 15″ | 24″ | 30˚ | 39″ | 80psi / 80cfm |
| GLTA4-24 | Pneumatic | 4000 lbs. | 48″ x 48″ | 60″ x 60″ | 15″ | 24″ | 30˚ | 39″ | 80psi / 80cfm |
UTB1 UTB2 UTB4 GLTA2-24 GLTA4-24
Contact us today for pricing and delivery information
call 800-575-4835 • email sales@handlingconcepts.com
