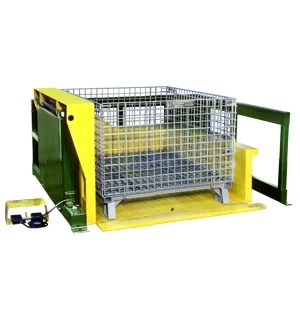

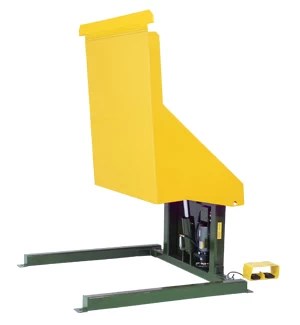

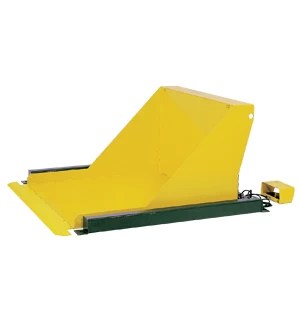

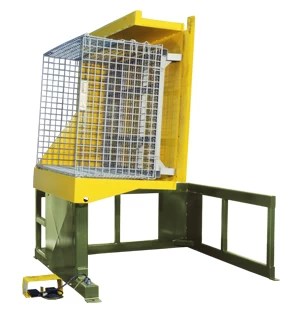

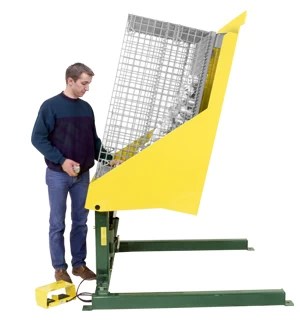

E-Z Reach™ Pan-Style Container Tilters
The wide, unobstructed container pan of the E-Z Reach™ Pan-Style Container Tilter allows containers of all types, even those with leg reinforcing bars, to be placed directly on the tilter in a single step by either a fork truck or hand pallet truck. The wide pan even accepts oversized containers.
In addition to standard front loading, these units can also be furnished in a side loading style or corner tilting configuration.

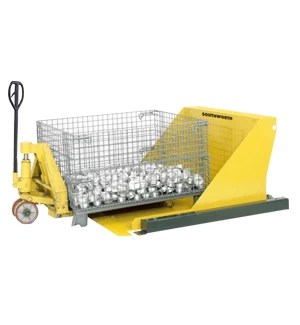

- Load and unload with a forklift or hand pallet truck
- Tilt loads to any angle up to 85˚
- 2,000 or 4,000 lb. capacity
- Works with all containers – even those with reinforcing bars
| Model Number | Capacity | Mast Height | Overall Width | Overall Length | Mast Depth | Low Height | Usable Pan Size | Tilt | Power |
|---|---|---|---|---|---|---|---|---|---|
| ZTU-2 Pan | 2,000 lbs. | 31-1/2″ | 62-1/2″ | 65-1/4″ | 7″ | 3/8″ | 50″ x 50″ | 85˚ | 115/1/60 |
| ZTU-4 Pan | 4,000 lbs. | 31-1/2″ | 62-1/2″ | 65-1/4″ | 7″ | 3/8″ | 50″ x 50″ | 85˚ | 115/1/60 |
ZTU-2 Pan ZTU-4 Pan
Contact us today for pricing and delivery information
call 800-575-4835 • email sales@handlingconcepts.com
