Mobile Overhead Fall Protection Systems
Does your company require employees to work at heights for machine maintenance or inspections? We offer a variety of fall protection and fall arrest systems for workers at height in various industries—indoors or outdoors. However, when a permanent fall protection system can’t be mounted to your existing building support structures or doesn’t offer the needed flexibility for your specific application, a mobile fall arrest system may be what you need. Rigid Lifelines mobile fall protection systems are perfect for:
- Temporary worksites or where the fall hazard isn’t always in the same location
- Rented facilities where you want the ability to relocate your fall arrest system more easily
- Applications where you need to move your system between different buildings or different locations of your building
Depending on the needs of your facility, we can provide one of our standard systems or develop a custom system that meets your specific needs. We offer mobile fall protection solutions that have the convenience of movement with the reliability of rigid enclosed track. Because all of our systems meet or exceed OSHA and ANSI requirements, you can rest assured that our systems will protect your most valuable asset: your employees.

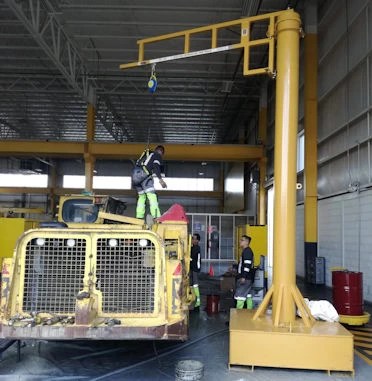

Portable Base Swing Arm
Rigid Lifelines® Portable Base Swing Arm Anchor Track™ System provides fall protection that is ideal for tight, narrow spaces.
This system provides 360-degree mobile protection for locations indoors or outdoors. Depending on the system size, the portable base weighs between 2,000 and 10,000 pounds. Larger systems may require up to three stackable portable bases.
Moveable by forklift, the standard system weights are between 2,500 and 29,000 pounds.

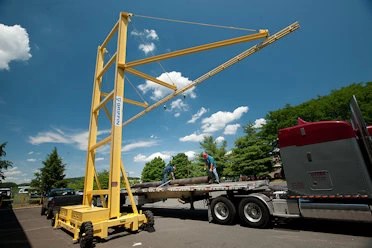

Griffin – Skidded or Wheeled
The Rigid Lifelines® Griffin™ Anchor Track™ System provides rigid track fall protection with coverage of up to 30 degrees off center.
We offer two different versions of the Griffin system: skidded and wheeled. Each Griffin version also includes a Low Headroom design for track lengths up to 22 feet.
With typical overall weights of approximately 15,000 pounds for the Skidded Griffin and 19,000 pounds for the Wheeled Griffin, the skidded system can be moved with a large forklift, and the wheeled system can be moved with a heavy-duty pickup truck.
Frequently used in exposed outdoor locations, the trolley effortlessly follows users’ movements as they traverse tops of vehicles and other large equipment.

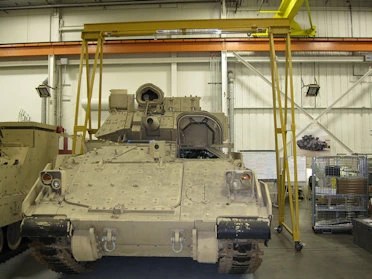

Adjustable Height Rolling A-Frame
The Rigid Lifelines® Adjustable-Height Rolling A-Frame Anchor Track™ System is a highly mobile fall protection system that offers great versatility.
With the ability to adjust height, span, and caster frame width, you can maneuver this system into tight spaces or through short bay doors to get to the fall hazard, providing coverage to virtually every area of your plant.
Its mobility saves space, time, and money by eliminating the need to install fall protection equipment around temporary work stations, and its versatility allows you to store this system compactly out of the way.
Fixed Height Rolling A-Frame
Rigid Lifelines® Fixed-Height Rolling A-Frame Anchor Track™ System is the ultimate in mobility for fall protection systems.
Simply roll the system into position and lock into place. Perfect for maintenance and manufacturing applications, this system provides coverage to virtually every area of your plant.
Its mobility saves space, time, and money by eliminating the need to install fall protection equipment around temporary work stations.

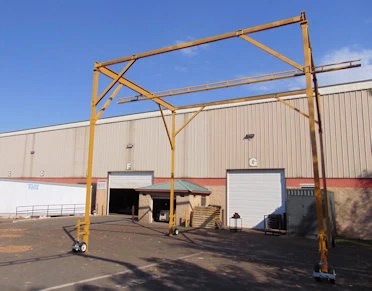

Portable Box Frame
Rigid Lifelines® Portable Box Frame Anchor Track™ System provides customizable sizes and capacity ratings in a mobile fall protection system that four people can move manually.
Available in a monorail or traveling bridge design, the Portable Box Frame provides a large fall protection coverage area compared to most other mobile systems.
The Portable Box Frame utilizes steel I-beam headers and braces that attach to support legs equipped with wheels, making this system perfect for the large equipment maintenance and manufacturing industry.
