PalletPal® Roll-On™ Level Loader
with Turntable

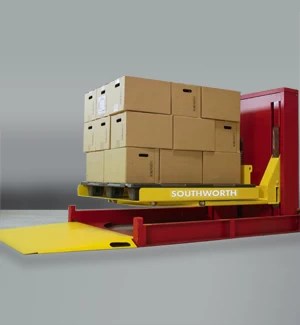

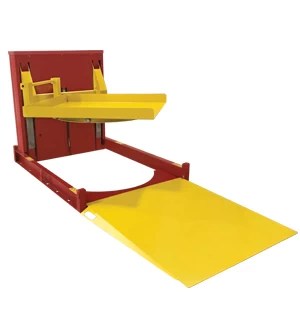

The PalletPal® Roll-On™ Level Loader with Turntable lowers to floor height so pallets can be rolled on and off with a hand pallet truck. The lift is then easily adjusted by pushbutton or foot control to maintain an ideal height for manual loading and unloading.
For added convenience, this unit features a built-in, hand pallet truck accessible 360˚ turntable. Workers can spin the pallet so they are always loading and unloading on the nearside.
- Lowers to floor level for hand pallet truck accessibility
- Built-in turntable platform
- 2,500 lb. capacity
- Toe protection is provided on all three working sides
- Removable ramp available in 33″ or 51″ lengths

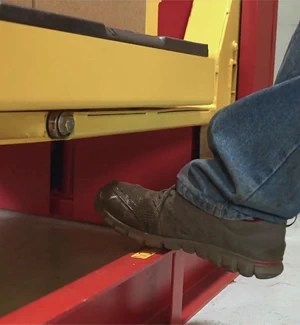

- Pushbutton or foot switch control available

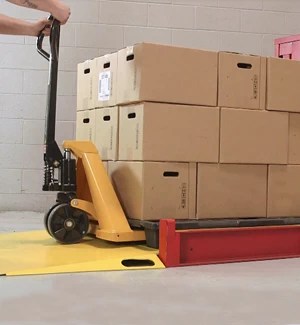

Can be loaded or unloaded with a hand pallet truck
Height adjustability is operator controlled

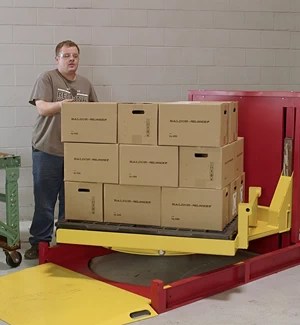

Boxes are at a comfortable height

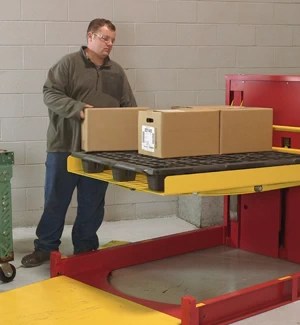

When platform is raised even the bottom row is easily accessible
Photo sensors stop downward travel when the beam is broken
| Model Number | Load Capacity | Raised Height | Lowered Height | Platform Size | Rise Time | Motor HP | Voltage |
|---|---|---|---|---|---|---|---|
| ROLLCTT2.5-28 | 2500 lbs | 30″ | 2″ | 44″ x 48″ | 30 sec | 1 | 115/1/60 |
ROLLCTT2.5-28
Contact us today for pricing and delivery information
call 800-575-4835 • email sales@handlingconcepts.com
