Powered PalletPal® Pallet Levelers / Lifters

When loads, weights, pallet sizes or product dimension vary greatly, a Powered PalletPal® Level Loader / Pallet Lifter with total operator control is the solution. A foot control allows the operator to adjust the load to any position within the working range of the unit so it’s always at the most comfortable height for loading or unloading.
Powered PalletPal® Levelers have a manual turntable top for easy rotation of the load so that the operator is always working on the near side.
Available in hydraulic or pneumatic configurations with 2,000 or 4,000 pound capacities.

• Pallet lift with operator controlled height adjustability
• Low-friction bearing supported turntable
• Fork pockets for easy relocation
• Hydraulic units operate on 115 volt power
• Pneumatic units operate on shop air (80 PSI/15CFM)
• Wide base for exceptional free standing stability​

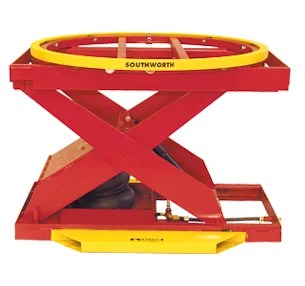

Pneumatic Powered PalletPal®

Model Number: . . . . . . . . PPA2-24
Load Capacity: . . . . . . . . 2000 lbs.
Raised Height: . . . . . . . . . . . 33-1/2″
Lowered Height: . . . . . . . . . . . 9-1/2″
Turntable Diameter: . . . . . 43-5/8″

Model Number: . . . . . . . . PPA4-24
Load Capacity: . . . . . . . . 4000 lbs.
Raised Height: . . . . . . . . . . . 33-1/2″
Lowered Height: . . . . . . . . . . . 9-1/2″
Turntable Diameter: . . . . . 43-5/8″

Hydraulic Powered PalletPal®

Model Number: . . . . . . . . PPH2-24
Load Capacity: . . . . . . . . 2000 lbs.
Raised Height: . . . . . . . . . . 33-3/16″
Lowered Height: . . . . . . . . . . 9-3/16″
Turntable Diameter: . . . . . 43-5/8″

Model Number: . . . . . . . . PPH4-24
Load Capacity: . . . . . . . . 4000 lbs.
Raised Height: . . . . . . . . . . 33-3/16″
Lowered Height: . . . . . . . . . . 9-3/16″
Turntable Diameter: . . . . . 43-5/8″

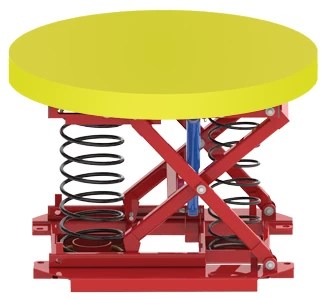

Solid Disc Cover
Solid steel disc cover in place of open turntable ring. Ideal for damaged pallets or small / odd sized pallets or skids.

Bellows Accordion Skirting
Black and yellow vinyl skirting wraps entire unit to keep underneath free from debris.
Pleats expand and contract as unit raise and lowers.

Fork Pocket Caster Kit
Mounts under unit in fork pockets to allow palletizer to be portable. A foot operated floor lock keeps the unit from rolling when in use.

Leveling Feet
For use on uneven or damaged floors. 4 adjustable screw feet can be independently adjusted to ensure the palletizer is perfectly level.

Access Step
Handy step slips into fork channels to give shorter workers better access to the top of loads. Non-skid surface.

Square Turntable Platforms
Units can be equipped with a square turntable instead of the standard ring. Use with small or odd shaped skids or pallets.

Special Finishes and Materials
PalletPal 360® is available with a variety of custom finishes including special paint colors, chemical resistant coatings, two-part epoxies, hot-dipped galvanizing. Stainless steel construction is also available.
