Scale-Equipped Drum Pourers
Drum handlers with scale designed to lift and weigh a drum, while pouring at up to 106″ (2.7 m) high. More than just a drum dumper… controlled drum dispensing!

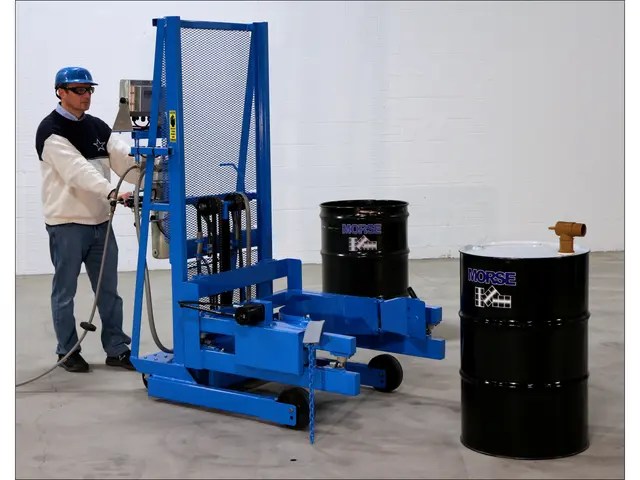

Morse Scale-Equipped Vertical-Lift Drum Pourers make it simple to lift, transport and pour a heavy drum. Weigh a drum while you pour to dispense precise amounts as needed.

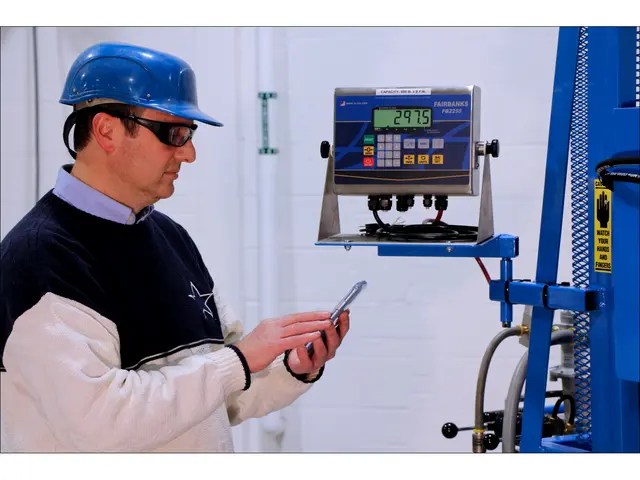

You control drum pouring angle and height while you dispense, and the digital indicator displays drum weight while you dispense from your drum. No need for a separate weighing station. Accurate batching by weight with accuracy to +/- 0.2% displayed.
- Scale-Equipped Vertical-Lift Drum Pourers let you weigh as you pour
- Single-Stage Vertical Lift Drum Pourers dispense at up to 60″ (152 cm) high
- Two-Stage Vertical-Lift Drum Pourers dispense at up to 106″ (269 cm) high
- Accuracy of +/- 0.2% of displayed weight
- Models available with Intrinsically-Safe Electronics
- Vertical-Lift Drum Pourers available with Power Lift and Power Tilt, Power Lift with Manual Tilt, or Manual Lift and Manual Tilt
- Stainless Steel models, and models with Spark-Resistant Parts are available
T-Type Scale
Intrinsically-Safe Electronics Ultra Low Power Intensity (ULPI) Instrument for use in many hazardous areas, approved for all classes, groups and divisions of N.E.C. hazardous environment classifications.
N-Type Scale
Economical general purpose instrument for use in a variety of weighing applications. NOT for use in hazardous areas. Powered by five ordinary alkaline D-cell batteries.
| Model | Type | Scale | Dispense Height | Lift Style | Tilt Style | Motor |
|---|---|---|---|---|---|---|
| 515-N | Standard Steel | N-Type | 60.0″ (152.4 cm) | Manual | Manual | – |
| 515-N-110 | Standard Steel | N-Type | 60.0″ (152.4 cm) | Power | Power | AC Motor |
| 515-N-114 | Standard Steel | N-Type | 60.0″ (152.4 cm) | Power | Power | Air Powered |
| 515-N-115 | Standard Steel | N-Type | 60.0″ (152.4 cm) | Power | Power | 12V Battery |
| 515-N-120 | Standard Steel | N-Type | 60.0″ (152.4 cm) | Power | Manual | AC Motor |
| 515-N-124 | Standard Steel | N-Type | 60.0″ (152.4 cm) | Power | Manual | Air Powered |
| 515-N-125 | Standard Steel | N-Type | 60.0″ (152.4 cm) | Power | Manual | 12V Battery |
| 515-T | Standard Steel | T-Type | 60.0″ (152.4 cm) | Manual | Manual | – |
| 515-T-114 | Standard Steel | T-Type | 60.0″ (152.4 cm) | Power | Power | Air Powered |
| 515-T-124 | Standard Steel | T-Type | 60.0″ (152.4 cm) | Power | Manual | Air Powered |
| 515M-T | Spark Resistant | T-Type | 60.0″ (152.4 cm) | Manual | Manual | – |
| 515M-T-114 | Spark Resistant | T-Type | 60.0″ (152.4 cm) | Power | Power | Air Powered |
| 515M-T-124 | Spark Resistant | T-Type | 60.0″ (152.4 cm) | Power | Manual | Air Powered |
| 515SS-N | Stainless Steel | N-Type | 60.0″ (152.4 cm) | Manual | Manual | – |
| 515SS-N-110 | Stainless Steel | N-Type | 60.0″ (152.4 cm) | Power | Power | AC Motor |
| 515SS-N-114 | Stainless Steel | N-Type | 60.0″ (152.4 cm) | Power | Power | Air Powered |
| 515SS-N-115 | Stainless Steel | N-Type | 60.0″ (152.4 cm) | Power | Power | 12V Battery |
| 515SS-N-120 | Stainless Steel | N-Type | 60.0″ (152.4 cm) | Power | Manual | AC Motor |
| 515SS-N-124 | Stainless Steel | N-Type | 60.0″ (152.4 cm) | Power | Manual | Air Powered |
| 515SS-N-125 | Stainless Steel | N-Type | 60.0″ (152.4 cm) | Power | Manual | 12V Battery |
| 515SS-T | Stainless Steel | T-Type | 60.0″ (152.4 cm) | Manual | Manual | – |
| 515SS-T-114 | Stainless Steel | T-Type | 60.0″ (152.4 cm) | Power | Power | Air Powered |
| 515SS-T-124 | Stainless Steel | T-Type | 60.0″ (152.4 cm) | Power | Manual | Air Powered |
| 525-N | Standard Steel | N-Type | 106.0″ (269.24 cm) | Manual | Manual | – |
| 525-N-110 | Standard Steel | N-Type | 106.0″ (269.24 cm) | Power | Power | AC Motor |
| 525-N-114 | Standard Steel | N-Type | 106.0″ (269.24 cm) | Power | Power | Air Powered |
| 525-N-115 | Standard Steel | N-Type | 106.0″ (269.24 cm) | Power | Power | 12V Battery |
| 525-N-117 | Standard Steel | N-Type | 106.0″ (269.24 cm) | Power | Power | AC Motor |
| 525-N-120 | Standard Steel | N-Type | 106.0″ (269.24 cm) | Power | Manual | AC Motor |
| 525-N-124 | Standard Steel | N-Type | 106.0″ (269.24 cm) | Power | Manual | Air Powered |
| 525-N-125 | Standard Steel | N-Type | 106.0″ (269.24 cm) | Power | Manual | 12V Battery |
| 525-N-127 | Standard Steel | N-Type | 106.0″ (269.24 cm) | Power | Manual | AC Motor |
| 525-T | Standard Steel | T-Type | 106.0″ (269.24 cm) | Manual | Manual | – |
| 525-T-114 | Standard Steel | T-Type | 106.0″ (269.24 cm) | Power | Power | Air Powered |
| 525-T-124 | Standard Steel | T-Type | 106.0″ (269.24 cm) | Power | Manual | Air Powered |
| 525M-T | Spark Resistant | T-Type | 106.0″ (269.24 cm) | Manual | Manual | – |
| 525M-T-114 | Spark Resistant | T-Type | 106.0″ (269.24 cm) | Power | Power | Air Powered |
| 525M-T-124 | Spark Resistant | T-Type | 106.0″ (269.24 cm) | Power | Manual | Air Powered |
| 525SS-N | Stainless Steel | N-Type | 106.0″ (269.24 cm) | Manual | Manual | – |
| 525SS-N-110 | Stainless Steel | N-Type | 106.0″ (269.24 cm) | Power | Power | AC Motor |
| 525SS-N-114 | Stainless Steel | N-Type | 106.0″ (269.24 cm) | Power | Power | Air Powered |
| 525SS-N-115 | Stainless Steel | N-Type | 106.0″ (269.24 cm) | Power | Power | 12V Battery |
| 525SS-N-120 | Stainless Steel | N-Type | 106.0″ (269.24 cm) | Power | Manual | AC Motor |
| 525SS-N-124 | Stainless Steel | N-Type | 106.0″ (269.24 cm) | Power | Manual | Air Powered |
| 525SS-N-125 | Stainless Steel | N-Type | 106.0″ (269.24 cm) | Power | Manual | 12V Battery |
| 525SS-T | Stainless Steel | T-Type | 106.0″ (269.24 cm) | Manual | Manual | – |
| 525SS-T-114 | Stainless Steel | T-Type | 106.0″ (269.24 cm) | Power | Power | Air Powered |
| 525SS-T-124 | Stainless Steel | T-Type | 106.0″ (269.24 cm) | Power | Manual | Air Powered |
515-N 515-N-110 515-N-114 515-N-115 515-N-120 515-N-124 515-N-125 515-T 515-T-114 515-T-124 515M-T 515M-T-114 515M-T-124 515SS-N 515SS-N-110 515SS-N-114 515SS-N-115 515SS-N-120 515SS-N-124 515SS-N-125 515SS-T 515SS-T-114 515SS-T-124 525-N 525-N-110 525-N-114 525-N-115 525-N-117 525-N-120 525-N-124 525-N-125 525-N-127 525-T 525-T-114 525-T-124 525M-T 525M-T-114 525M-T-124 525SS-N 525SS-N-110 525SS-N-114 525SS-N-115 525SS-N-120 525SS-N-124 525SS-N-125 525SS-T 525SS-T-114 525SS-T-124
Contact us today for pricing and delivery information
call 800-575-4835 • email sales@handlingconcepts.com
