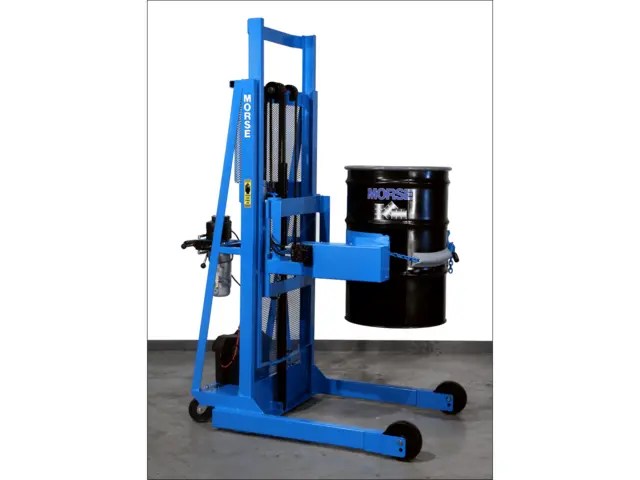

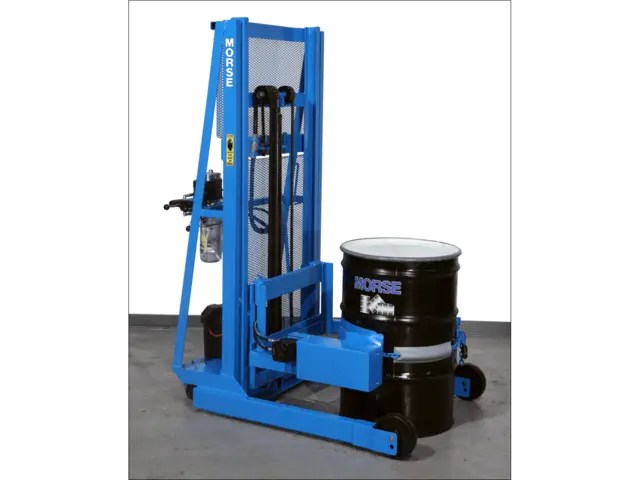

Vertical-Lift Drum Pourers
Drum lifters on wheels designed to lift and pour a drum at up to 106″ (269 cm) high. More than just a drum dumper. . .controlled drum dispensing.
Morse Vertical-Lift Drum Pourers make it simple to raise and pour a heavy drum.
You control the drum pouring angle and height while you dispense.
The compact base and quality components of Vertical-Lift drum handlers make it easy to maneuver.
Pour a drum with drum faucet, valve or drum cone in place.
Models with Battery, Air or plug-in Electric Power Lift and Power Drum Tilt Control.
Manual models have hand pump drum lift and hand crank or pull chain for drum tilt control.
- Single-Stage Vertical Lift Drum Pourers dispense at up to 60″ (152 cm) high
- Two-Stage Vertical-Lift Drum Pourers dispense at up to 106″ (269 cm) high
- Turn drum 360° in either direction
- Vertical-Lift Drum Pourers available with Power Lift and Power Tilt, Power Lift with Manual Tilt, or Manual Lift and Manual Tilt
- Standard Steel models and models with Spark-Resistant Parts are available
| Model | Type | Dispense Height | Lift Style | Tilt Style | Motor |
|---|---|---|---|---|---|
| 510 | Standard Steel | 60.0″ (152.4 cm) | Manual | Manual | – |
| 510-110 | Standard Steel | 60.0″ (152.4 cm) | Power | Power | AC Motor |
| 510-114 | Standard Steel | 60.0″ (152.4 cm) | Power | Power | Air Powered |
| 510-115 | Standard Steel | 60.0″ (152.4 cm) | Power | Power | 12V Battery |
| 510-117 | Standard Steel | 60.0″ (152.4 cm) | Power | Power | AC Motor |
| 510-120 | Standard Steel | 60.0″ (152.4 cm) | Power | Manual | AC Motor |
| 510-124 | Standard Steel | 60.0″ (152.4 cm) | Power | Manual | Air Powered |
| 510-125 | Standard Steel | 60.0″ (152.4 cm) | Power | Manual | 12V Battery |
| 510M | Spark Resistant | 60.0″ (152.4 cm) | Manual | Manual | – |
| 510M-114 | Spark Resistant | 60.0″ (152.4 cm) | Power | Power | Air Powered |
| 510M-124 | Spark Resistant | 60.0″ (152.4 cm) | Power | Manual | Air Powered |
| 520 | Standard Steel | 106.0″ (269.24 cm) | Manual | Manual | – |
| 520-110 | Standard Steel | 106.0″ (269.24 cm) | Power | Power | AC Motor |
| 520-114 | Standard Steel | 106.0″ (269.24 cm) | Power | Power | Air Powered |
| 520-115 | Standard Steel | 106.0″ (269.24 cm) | Power | Power | 12V Battery |
| 520-117 | Standard Steel | 106.0″ (269.24 cm) | Power | Power | AC Motor |
| 520-120 | Standard Steel | 106.0″ (269.24 cm) | Power | Manual | AC Motor |
| 520-124 | Standard Steel | 106.0″ (269.24 cm) | Power | Manual | Air Powered |
| 520-125 | Standard Steel | 106.0″ (269.24 cm) | Power | Manual | 12V Battery |
| 520M | Spark Resistant | 106.0″ (269.24 cm) | Manual | Manual | – |
| 520M-114 | Spark Resistant | 106.0″ (269.24 cm) | Power | Power | Air Powered |
| 520M-124 | Spark Resistant | 106.0″ (269.24 cm) | Power | Manual | Air Powered |
510 510-110 510-114 510-115 510-117 510-120 510-124 510-125 510M 510M-114 510M-124 520 520-110 520-114 520-115 520-117 520-120 520-124 520-125 520M 520M-114 520M-124
Contact us today for pricing and delivery information
call 800-575-4835 • email sales@handlingconcepts.com
